Disclaimer: This article was originally written for IBM. That article also contains a section about iOS, which was written by my co-worker.

In this article, I am going to show you how to implement the use of ‘Demonstration Proof-of-Possession’ (DPoP) tokens from IBM Security Verify (ISV) into your mobile and custom web app.

I describe the mechanisms for the relevant parties (client, authorization server, resource server) and then explain how to implement the relevant steps in the demo environment. This environment includes IBM Security Verify, a custom web app and a mobile application.

Pre-requisite
Introduction
Demo environment
Limitations
Conclusion

Pre-requisite

You need access to an ISV tenant and the permission to configure an application. If you don’t have access to an ISV tenant, you can start your trail here. You also need to be able to build and run an Android or iOS mobile application and a custom web app.

Introduction

The “OAuth Demonstrating Proof of Possession” adds an extra layer of security to the OAuth 2.0 protocol. It requires clients to prove their possession of a specific key, usually a cryptographic one, when they access protected resources through APIs. This mechanism is crucial for enhancing security by reducing the risks that are associated with token leakage, unauthorized access, and various types of attacks. In situations that are demanding robust security, such as those involving API providers and clients, DPoP serves as a vital security feature. It also defines a mechanism to prevent malicious actors from using an OAuth token that they obtained illicitly. This mechanism includes checks to verify whether the application that is presenting the access token is the same one the access token was initially issued to. The application proves it by binding the ‘DPoP’ token to a privately generated key, which is securely held by the client.

This diagram demonstrates the flow:

sequenceDiagram participant mobileapp as Mobile App participant isv as IBM Security Verify participant webapp as Custom Web App mobileapp->>mobileapp: generate key pair mobileapp->>mobileapp: generate DPoP header (JWT) mobileapp->>isv: token request isv->>isv: verifies DPoP header isv->>isv: generate access token isv->>isv: bind public key from JWT to access token isv->>mobileapp: access token mobileapp->>mobileapp: generate DPoP header mobileapp->>webapp: request resource with access token and DPoP header webapp->>webapp: extract access token and DPoP header webapp->>isv: introspect request for access token isv->>webapp: access token details webapp->>webapp: validates DPoP header and access token alt DPoP validation successful webapp->>mobileapp: success else DPoP validation failed webapp->>mobileapp: fail end

Let’s go through each step more in detail:

The mobile app generates a key pair in the secure storage.

The DPoP Header is a JSON Web Token (JWT) that includes the JSON Web Key (JWK) representation of the public key:

typ: must be dpop+jwt
alg: identifier for a JWS asymmetric digital signature algorithm
jwk: { "kty": "RSA" ...}

And a list of request-specific attributes in the payload:

jti: unique identifier
iat: creation timestamp of the JWT
htm: the value of the HTTP method (for example GET, POST)
htu: the URI of the request without query and fragment parts

It is signed with the private key.

Example of the header and payload structure:

 {
     "alg": "RS256",
     "typ": "dpop+jwt",
     "jwk": {
         "kty": "RSA",
         "kid": "91e1b216-d330-47ec-b6a1-89c81049ff9f",
         "n": "0rP7xyhCH6Lauw5mA2nokBElT1NQ-zOAK4ybfIe-tEE_JRbXc-OCveJnQ8hHCFtjq9vZyHIqxA3TzQgnMP86ozLMqPt3BoxbSg7dAxXZ8UfNnwU--baVcXBKMVhc_vas8ZDWdI2BUBQqkLsdmzRdiXKwROMamVUzXoTNxHj513Ac-hcEZBaM7cLKADKCVjAl4h9Ui_Bep3IKxPfeGRf34yc_lxDxo08jc9ZPDW5LY76TOTGncKq7dJp7A0Z2btIX6mL-z6ctsfCFRfcGeL8w5umyxuNhXrut7LQd_d5KwClQXeTKEE7IRymK96pWiCldECdwfo0Fgrt7ZvxnsIB2eQ",
         "e": "AQAB"
     }
 }

 {
     "jti": "rImC2rQeKg2J1sQcUKRhqw",
     "iat": 1698124549,
     "htm": "POST",
     "htu": "https://your-tenant.verify.ibm.com/oauth2/token"
 }

That JWT is sent as the DPoP header in the token request.
The authorization server extracts the DPoP header and verifies its signature.
An access token of type DPoP is generated for the client.
As part of this process, the thumbprint is generated from the JWK embedded in the DPoP proof and added to the authorization grant as part of the “confirmation” claim (cnf). This confirmation claim is then made available as part of the token introspection response (see 12. in this list).
The access token of type DPoP is issued to the client.
Every time the client wants to make a request with the issued DPoP token, it must generate a corresponding DPoP header. That header contains the same values as in 2. and according to the request:
- ath: base64url encoded SHA256 hash of the access token
The request is made to the resource server, including the generated DPoP header and DPoP <access token> as the Authorization header. This prefix indicates the use of a DPoP-bound token and requires the proof to be included as part of the DPoP header.
The resource server extracts the DPoP header and access token from the request.
The resource server calls the authorization server to introspect the token, for example here.
The authorization server returns the introspection details of the access token.
The resource server performs a couple of checks to validate the DPoP token and the request. The “proof of possession” is validated by:
- comparing the ath value from the DPoP header with the computed value of the access token
- comparing the bas64url encoding SHA256 hash of the public key from the DPoP header with the cnf.jkt attribute from the introspection response
If all validations are successful, the access to the resource is granted.
Or rejected otherwise.

Demo environment

I provide a sample app for Android and a web app that allows you to test the described flow end-to-end.

IBM Security Verify

Login to your tenant as an administrator.
From the sidebar menu: Applications –> Applications
Click Add Application
In the search bar, type in open and select OpenID Connect in the list of available applications and click Add Application (lower right button)
Fill-in the values for the required attributes and configure the application as you need.

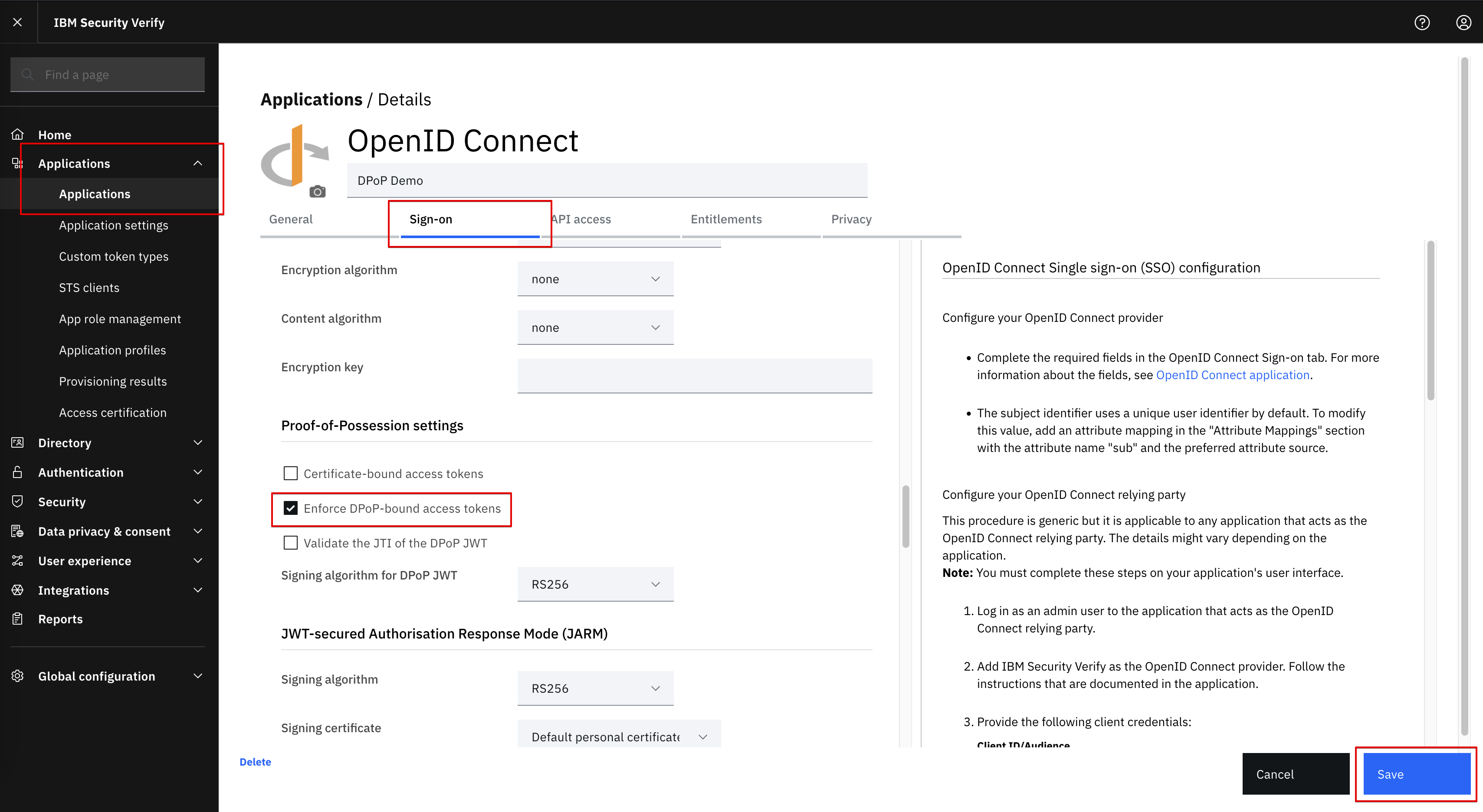

The relevant parts for this demo are on the Sign-on tab:
- for Grant types select Authorization code and Client credentials
- in the Proof-of-Possession settings section (further below), select Enforce DPoP-bound access token
Click Save
That saves your configuration and creates the Client ID and Client secret. Take note of these values - they are needed to configure the mobile and web application.

Custom Web App

The custom web app mimics a resource server that validates DPoP tokens.

Setup

Download the demo app from here
Configure the relevant parameter in app.js
Run npm install
Start the server by node app.js

That starts the server on https://localhost:8080.

Endpoints

It provides two endpoints:

/status GET - returns Running
/validate-token GET - validates the DPoP token. Returns HTTP 204 if the token is successfully validated. Or HTTP 401 otherwise.

Upon receiving a request, the server extracts the DPoP header (JWT) and access token:

const accessToken = request.headers.authorization.split(" ")[1]
const dpopHeader = request.headers["dpop"]

It then checks that only one DPoP header is present…

let dpopProof = true
dpopProof = dpopProof && (request.headers["dpop"].split(',').length == 1)
console.log("There is only one DPoP HTTP request header field: " + dpopProof)

…and validates the signature of the JWT and extracts the payload…

let dpopHeaderUnpacked = await jose.JWS.createVerify().verify(dpopHeader, { allowEmbeddedKey: true })
let jsonPayload = JSON.parse(dpopHeaderUnpacked.payload)

…and then does the remaining checks that are listed in https://datatracker.ietf.org/doc/html/rfc9449#name-checking-dpop-proofs

All required claims are contained in the JWT

 dpopProof = dpopProof && (jsonPayload.htu !== undefined)
 ...
 // htu, htm, ath, jti, ait must be present

The type JOSE Header Parameter has the value dpop+jwt

 dpopProof = dpopProof && (dpopHeaderUnpacked.header.typ === "dpop+jwt")

The alg JOSE Header Parameter indicates a registered asymmetric digital signature algorithm
```
 dpopProof = dpopProof && (dpopHeaderUnpacked.header.alg === "RS256")
```

The htm claim matches the HTTP method of the current request

 dpopProof = dpopProof && (jsonPayload.htm === request.method)

The htu claim matches the HTTP URI value for the HTTP request

 const fullUrl = request.protocol + '://' + request.get('host') + request.originalUrl
 dpopProof = dpopProof && (jsonPayload.htu === fullUrl)

The creation time of the JWT is within an acceptable window

const timeInSec = new Date().getTime() / 1000
dpopProof = dpopProof && (iat < timeInSec + 1) && (exp > timeInSec)

The value of the ath claim equals the hash of that access token

let digest = crypto.createHash('sha256').update(accessToken).digest()
let atHash = jose.util.base64url.encode(digest);
dpopProof = dpopProof && (atHash === jsonPayload.ath)

The public key to which the access token is bound matches the public key from the DPoP proof:

let thumbprint = await dpopHeaderUnpacked.key.thumbprint('SHA-256');
computedFingerprint = jose.util.base64url.encode(thumbprint);
...
doTokenInspectionRequest(accessToken).then((response) => {
    const introspectionResponse = JSON.parse(response)
    dpopProof = dpopProof && (introspectionResponse["cnf"]["jkt"] !== undefined)
    dpopProof = dpopProof && (introspectionResponse["cnf"]["jkt"] === computedFingerprint)
  })

For validating that the client is the legitimate owner of the access token, the resource server verifies that the public key to which the access token is bound (the jkt.cnf claim) matches the public key of the DPoP proof (from the DPoP header). It also verifies that the access token hash in the DPoP proof matches the access token that is presented in the request.

For the request to be successful, each of the checks that are listed above need to be passed.

When successfully validated, the accessToken is added to a cache along with its expire time (exp value). That cache is checked before an introspection call if the accessToken is present and not expired to avoid unnecessary network requests.

Mobile Apps

The mobile apps demonstrate how to obtain a DPoP token from IBM Security Verify and how that token is used in subsequent requests to the resource server.

** CAUTION ** The recommendation for a mobile application is to obtain an authorization code with a browser authorization flow as described in OAuth 2.0 for Native Apps and exchanges that code for an access token.

I use the OAuth Client Credentials flow in the demo app for not unnecessarily bloating the code. It is not recommended to store Client ID and Client secret in a mobile application in production as a bad actor will extract those credentials.

Android App

Setup

Download the demo app from here
Open the app in “Android Studio”
Configure the relevant parameters in MainActivity.kt: the resourceServer is the IP address of the custom web app

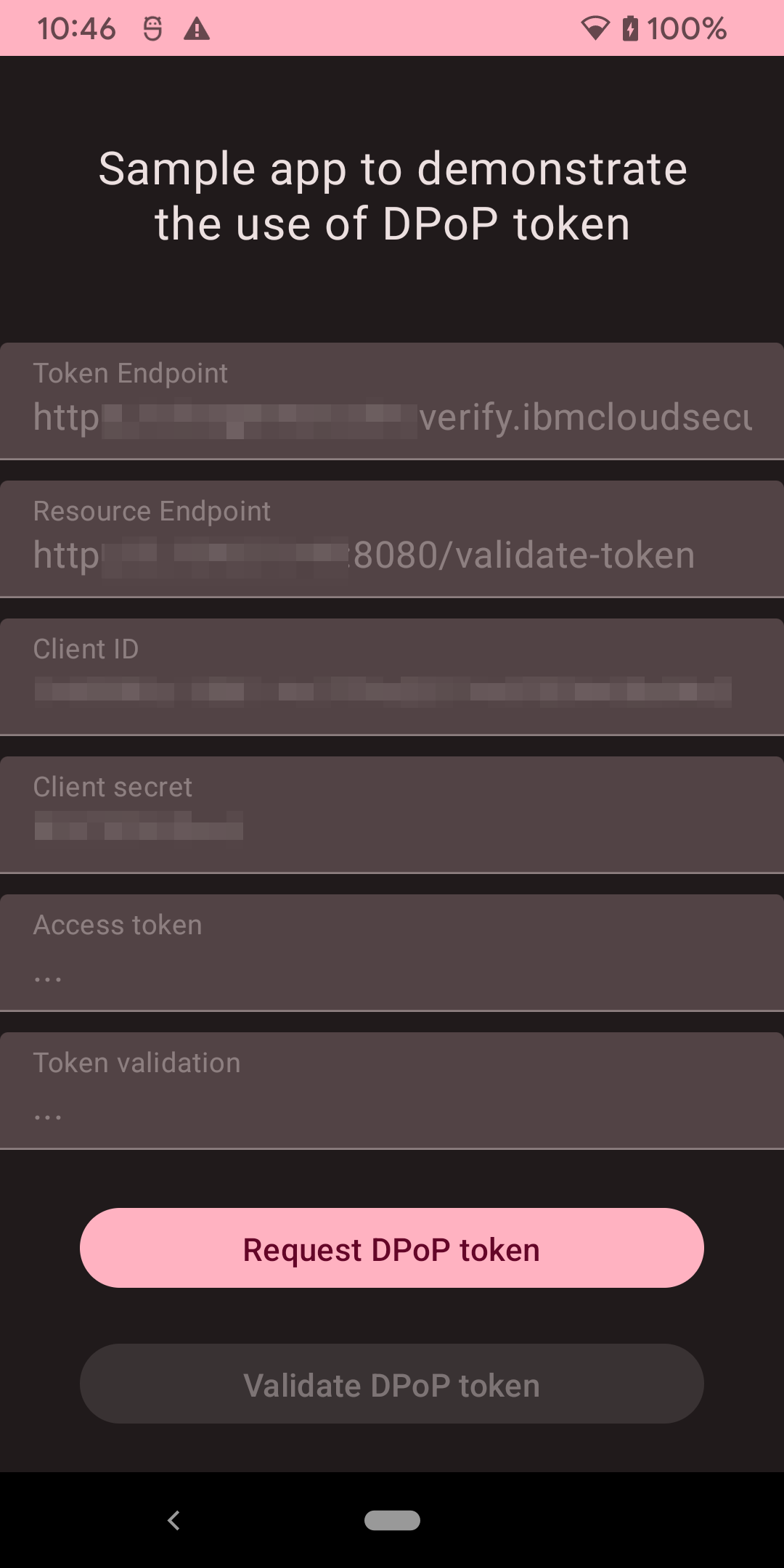

The app presents a single activity, showing the configuration and two buttons to request and validate a DPoP token:

In this demo app, I use the jose4j library that provides convenient support for the JSON Object Signing and Encryption (JOSE) standards.

Request DPoP Token

For every network request to the authorization and resource servers the app adds a DPoP header that is generated in the generateDpopHeader function:

private fun generateDpopHeader(htu: String, htm: String, accessToken: String?): String {
    val jwtClaims: JwtClaims = JwtClaims()
    jwtClaims.setGeneratedJwtId()
    jwtClaims.setIssuedAtToNow()
    jwtClaims.setClaim("htm", htm)
    jwtClaims.setClaim("htu", htu)
    if (accessToken != null) {
        val bytes = accessToken.toByteArray(StandardCharsets.UTF_8)
        val messageDigest = MessageDigest.getInstance("SHA-256")
        messageDigest.update(bytes, 0, bytes.size)
        val digest = messageDigest.digest()
        val base64encodedFromDigest =
            Base64.getUrlEncoder().withoutPadding().encodeToString(digest)
        Log.d(TAG, "Token: $accessToken")
        Log.d(TAG, "Base64 encoded (digest): $base64encodedFromDigest")
        jwtClaims.setClaim("ath", base64encodedFromDigest)
    }
    val jws: JsonWebSignature = JsonWebSignature()
    jws.payload = jwtClaims.toJson()
    jws.key = getRsaSigningKey()
    jws.algorithmHeaderValue = "RS256"
    jws.jwkHeader = RsaJsonWebKey(keyStore.getCertificate(RSA_KEY_NAME).publicKey as RSAPublicKey)
    jws.setHeader("typ", "dpop+jwt")
    return jws.compactSerialization
}

The token request is sent to the server:

--> POST https://your-tenant.verify.ibm.com/oauth2/token
Content-Type: application/x-www-form-urlencoded
Content-Length: 114
Accept: application/json
DPoP: ey... from generateDpopHeader(...)
client_id=...&client_secret=...&grant_type=client_credentials&scope=openid
--> END POST (114-byte body)
<-- 200 https://your-tenant.verify.ibm.com/oauth2/token (2672ms)
x-backside-transport: OK OK
content-type: application/json;charset=UTF-8
content-length: 274
date: Fri, 27 Oct 2023 01:34:13 GMT
{"access_token":"abc...123","expires_in":1799,"grant_id":"228048a8-2de0-42f0-8642-0111eb8a0c17","scope":"openid","token_type":"DPoP"}
<-- END HTTP (274-byte body)

The server returns an access token of type DPoP.

Also note the absence of a refresh token because of grant_type=client_credentials. From the docs:

The refresh token that is used to obtain new access tokens. It is only available for authorization_code grant if the refresh_token grant is enabled.

Validate DPoP Token

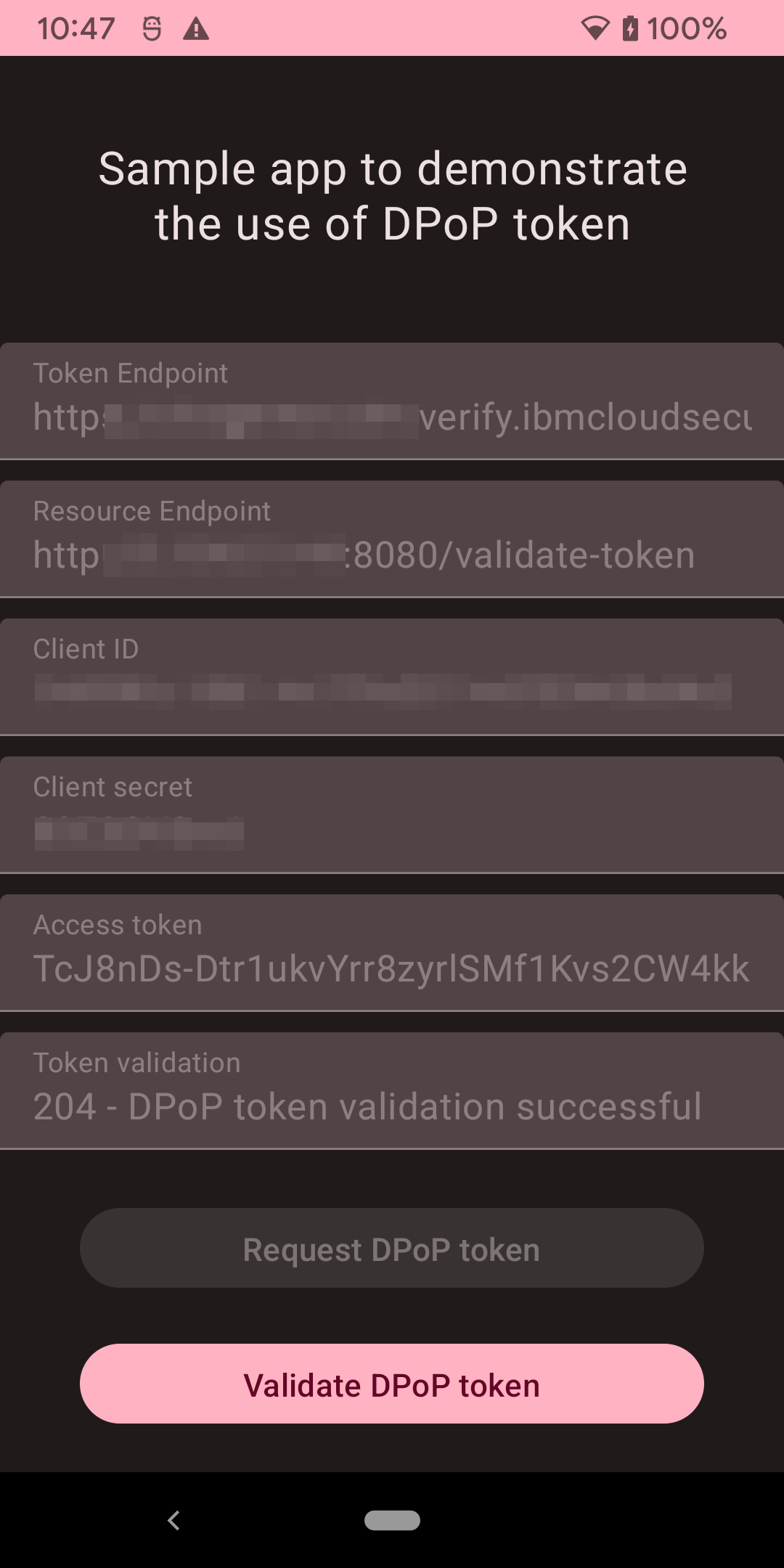

With the DPoP token, the app can perform subsequent requests to the resource server. For each request, a new DPoP header needs to be constructed with the generateDpopHeader(...) method listed above…

val headers = HashMap<String, String>()
headers["DPoP"] = generateDpopHeader(
    htu = resourceEndpoint,
    htm = "GET",
    accessToken = dpopToken.accessToken)

…and the /validate-token endpoint ot the custom web app is called:

apiService.validateDpopToken(
    headers,
    String.format("DPoP %s", dpopToken.accessToken),
    resourceEndpoint)
    .enqueue(object : Callback<ResponseBody> {
        override fun onResponse(
            call: Call<ResponseBody>,
            response: Response<ResponseBody>
        ) {
            if (response.isSuccessful) {
                Log.d(TAG, "DPoP token validation successful")
            } else {
                Log.d(TAG, "DPoP token validation failed")
            }
        }

        override fun onFailure(call: Call<ResponseBody>, t: Throwable) {
            throw (t)
        }
    })

--> GET http://your-resource-server:8080/validate-token
Accept: application/json
DPoP: ey... from generateDpopHeader(...)
Authorization: DPoP abc...123
--> END GET

Protecting the Signing Key

The RSA keypair that is bound to the access token and that used to sign the JWT, is generated in the Android keystore to protect it.

private fun getRsaSigningKey() : Key {

        if (keyStore.containsAlias(RSA_KEY_NAME)) {
            Log.d(TAG, "Key $RSA_KEY_NAME found in KeyStore")
        } else {
            val keyGenParameterSpec = KeyGenParameterSpec.Builder(
                RSA_KEY_NAME,
                KeyProperties.PURPOSE_SIGN or KeyProperties.PURPOSE_VERIFY
            )
                .setDigests(KeyProperties.DIGEST_SHA256)
                .setSignaturePaddings(KeyProperties.SIGNATURE_PADDING_RSA_PKCS1)
                .setAlgorithmParameterSpec(RSAKeyGenParameterSpec(2048, RSAKeyGenParameterSpec.F4))
                .build();

            val keyPairGenerator = KeyPairGenerator.getInstance(KeyProperties.KEY_ALGORITHM_RSA,ANDROID_KEYSTORE)
            keyPairGenerator.initialize(keyGenParameterSpec)
            Log.d(TAG, "Key $RSA_KEY_NAME generated")
            keyPairGenerator.generateKeyPair()
        }

        return keyStore.getKey(RSA_KEY_NAME, null)
    }

This key might be rotated for every token request.

The private key is passed into the JWS for the signing operation…

jws.key = getRsaSigningKey()

…and the public key is added as a JWK header:

jws.jwkHeader = RsaJsonWebKey(keyStore.getCertificate(RSA_KEY_NAME).publicKey as RSAPublicKey)

iOS App

The original post includes an iOS section, written by my co-worker. I just link it here, as I don’t want to claim credit for it.

Limitations

Using DPoP prevents bad actors from getting access to protected resources by extracting an access token from a client. They would also need access to the crypto key that is bound to that token - that significantly increases the complexity of an attack.

However, it does not guarantee that only your client (your “mobile app”) can access a resource. If the API is known, an API client can be used to generate the DPoP header and to simulate the behavior of a mobile app.

Conclusion

OAuth DPoP support is relevant for businesses that rely on OAuth 2.0 for securing their APIs, particularly when strong security and protection against certain types of attacks are crucial, for example financial institutions. OAuth DPoP enhances the security of OAuth 2.0 by providing a way to prove the possession of a cryptographic key when making requests to an OAuth-protected API.

In summary, I described the mechanisms for the relevant parties (client, authorization server, resource server) and explained how to implement the relevant steps in a demo environment, including IBM Security Verify, a custom web app and a mobile application.

“Nobody is so good that has nothing to learn,
and nobody so bad that has nothing to share.”

Share on

Twitter Facebook LinkedIn

Carsten Hagemann

Implement high assurance flows with IBM Security Verify and Android apps

Pre-requisite

Introduction

Demo environment

IBM Security Verify

Custom Web App

Setup

Endpoints

Mobile Apps

Android App

Setup

Request DPoP Token

Validate DPoP Token

Protecting the Signing Key

iOS App

Limitations

Conclusion

Leave a comment

Share on

You may also enjoy

Cleanup GitHub workflows jobs

Configuring verifiable links

Backup with rclone

Create your own authenticator
